Home / Product / PRESSURE / PB6000 series pressure transmitter
More topics

PB6000 series pressure transmitter Suppliers

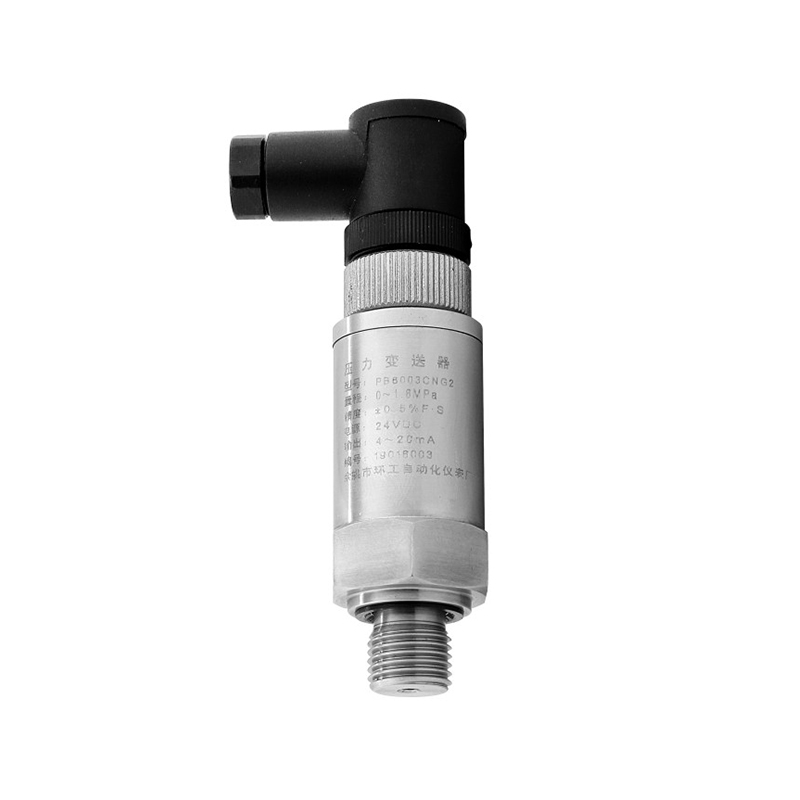

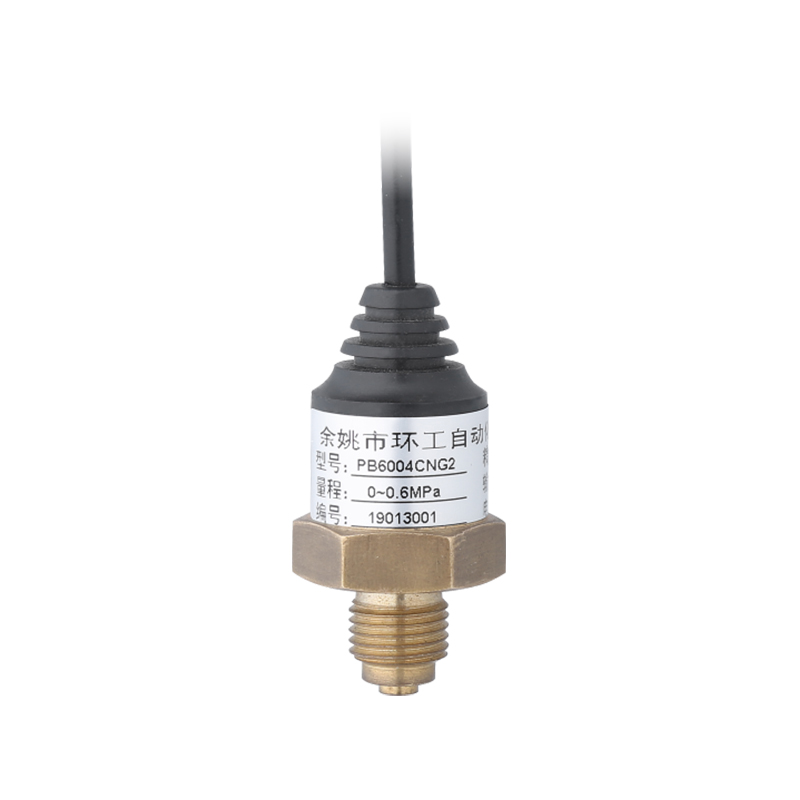

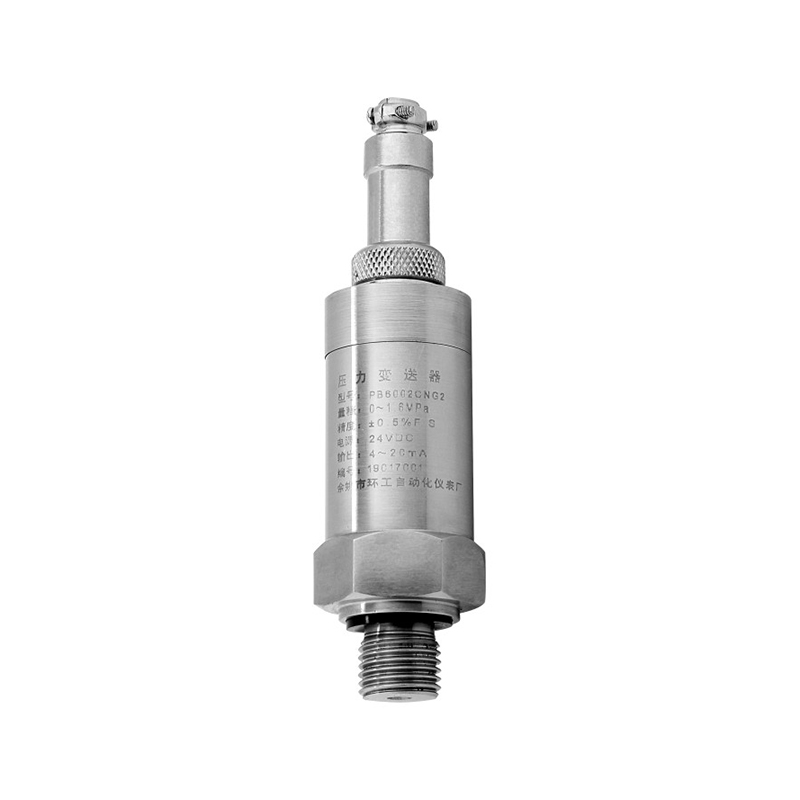

PB6000 series of fine and small pressure transmitters use ceramic piezoresistive pressure sensing elements and imported high-quality integrated circuits, which are used to measure the pressure of liquid or gas, and convert the pressure or liquid level into standard electrical signals. Liquid level measuring instruments, PB6000 series pressure transmitters, are widely used in various automatic measurement and control fields because of their excellent performance. It is mainly used in mechanical equipment and other occasions with small installation space. It adopts a unique junction box, which is convenient for installation and maintenance. Because of its excellent performance, it can replace high-performance imported pressure transmitters.
  • Accuracy: 0.5%F·S
  • Measuring range: -0.1...0bar to -1...0bar 0...0.1bar to 0...600bar to -1...25bar relative 0...1bar to 0...35bar absolute
  • Linearity: Superior to 0.25%F·S
  • Stability: superior to 0.25%F·S
  • Temperature drift: superior to ±0.75%F·S（0...50℃)
  • Response time: ≤10mS
  • Power supply: 24VDC or (12VDC...36VDC optional)
  • Output: 4...20mA (or 1...5V)
  • Load resistance: 0~600Ω
  • Proof pressure: 150%F·S
  • Ambient temp: -20...85℃
  • Compensated temp: -20...85°C
  • Storage temp: -45...125°C
  • Process connection:1/4BSP
  • Wetted parts: 304 stainless steel
  • Diaphragm Material: 316L stainless steel
  • Housing Material: 304 stainless steel or 316 stainless steel
  • Power Consume: <0.5W (24VDC)
About us

Ningbo Qingyang Automation Technology Co., Ltd.

Yuyao Huangong Automation Instruments Factory

Ningbo Qingyang Automation Technology Co., Ltd. is famous China PB6000 series pressure transmitter suppliers and OEM/ODM PB6000 series pressure transmitter manufacturers. We have advanced and complete top-notch testing equipment in the industry, physical testing laboratories, automatic pressure calibration equipment, automatic temperature calibration equipment, wholesale PB6000 series pressure transmitter etc. The above equipment can fully ensure the provision of high-precision final Custom PB6000 series pressure transmitter to customers, and can ensure that customers can meet all-round testing requirements for physical and chemical properties of materials, high-precision geometric dimension testing, etc.

  • 20+

    Years experience

  • 1000+

    Company area

  • 200+

    Team members

  • 30+

    Export country

Honor

News center
Industry knowledge extension of this category
What is PB6000 series pressure transmitter
The PB6000 series pressure transmitter is a type of device used to measure the pressure of gases or liquids in various industrial applications.The PB6000 series features a compact design with a robust stainless steel housing, making it suitable for use in harsh environments. It is available in various pressure ranges, from vacuum to high-pressure applications, and can measure gauge, absolute, or differential pressure.
These pressure transmitters use advanced piezoresistive sensor technology to provide accurate and reliable measurements, even under challenging conditions. They also offer a range of output options, including analog signals and digital protocols like HART or Profibus, allowing for easy integration with process control systems.
Types of PB6000 series pressure transmitter
The PB6000 series pressure transmitter includes a variety of types that are designed for different pressure measurement applications. Here are some common types of PB6000 series pressure transmitter:
1.Gauge pressure transmitter: This type of pressure transmitter measures the pressure relative to atmospheric pressure. It is used to measure the pressure of gases or liquids in various industrial applications.
2.Absolute pressure transmitter: This type of pressure transmitter measures the pressure relative to a perfect vacuum. It is used to measure the pressure of gases or liquids in vacuum applications.
3.Differential pressure transmitter: This type of pressure transmitter measures the difference in pressure between two points. It is used to measure the flow rate of gases or liquids in pipelines and other fluid systems.
Advantages of PB6000 series pressure transmitter
The PB6000 series pressure transmitter offers several advantages that make it a popular choice for industrial pressure measurement applications. Some of the main advantages of this series of pressure transmitters include:
1.Wide pressure range: The PB6000 series pressure transmitter is available in various pressure ranges, from vacuum to high-pressure applications. This versatility allows the transmitter to be used in a wide range of industrial applications.
2.Robust and durable design: The PB6000 series pressure transmitter features a compact and robust stainless steel housing that can withstand harsh industrial environments. It is resistant to vibration, shock, and other environmental factors that could affect its performance.
3.Easy to install and use: The PB6000 series pressure transmitter is designed to be easy to install and use, with a range of mounting options and output configurations available. It also features user-friendly interfaces, making it easy to configure and calibrate.
