Temperature and liquid level integrated transmitter Suppliers

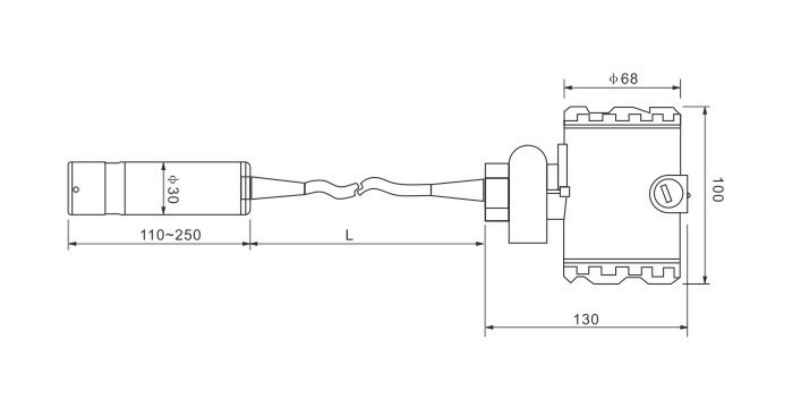

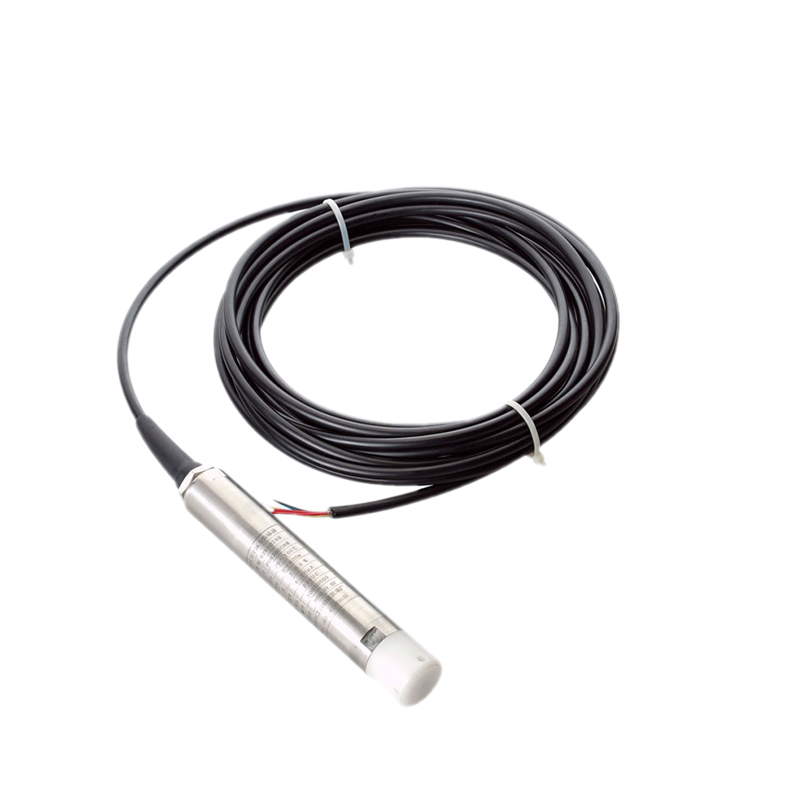

PB8700 series integrated submersible temperature and liquid level transmitter is composed of sensor, air guide cable, stainless steel cylinder and so on. By measuring the temperature and pressure at the location of the sensor, the temperature and liquid level of the liquid are tested, and the liquid temperature and liquid level are converted into corresponding standard electrical signals for output. It has stable performance, good reliability and long service life. The internal circuit design meets the requirements of intrinsically safe explosion-proof. The maximum water depth can reach more than 1500 meters. Its excellent performance is the first in China. It is mainly designed for Sinopec oil and gas well exploration. Used to measure the temperature and depth of water.
  • Accuracy: 0.5%F·S
  • Measuring range: liquid level: 0...5m, up to 1500m  temperature: 0...70℃
  • Linearity: superior to 0.2%F·S
  • Temperature drift: superior to ±0.03%F·S/℃
  • Stability: superior to 0.5%F·S for 1 year
  • Response time: 10mS
  • Power supply: 12 to 36VDC
  • Output: 4...20mADC
  • Load Resistance: 0~600Ω
  • Liquid temp: -10...60℃
  • Compensated temp: -10...60℃
  • Storage temp: -40...125℃
  • Installation position: Direct into the bottom of the liquid
  • Housing material: 304 stainless steel or 316 stainless steel
  • Diaphragm material: 316 stainless steel
  • Breathing cable: Polythene or PTFE
  • Weight: Stainless steel pipe(G1): about 500g
  • Breathing cable(G2): about 65g/m
  • Junction box(G3): about 300g-700g
  • Gross weight(G): G=G1+G2*length(m)+G3
  • Power consume: <0.5W+0.5W(24VDC)
About us

Ningbo Qingyang Automation Technology Co., Ltd.

Yuyao Huangong Automation Instruments Factory

Ningbo Qingyang Automation Technology Co., Ltd. is famous China Temperature and liquid level integrated transmitter suppliers and OEM/ODM Temperature and liquid level integrated transmitter manufacturers. We have advanced and complete top-notch testing equipment in the industry, physical testing laboratories, automatic pressure calibration equipment, automatic temperature calibration equipment, wholesale Temperature and liquid level integrated transmitter etc. The above equipment can fully ensure the provision of high-precision final Custom Temperature and liquid level integrated transmitter to customers, and can ensure that customers can meet all-round testing requirements for physical and chemical properties of materials, high-precision geometric dimension testing, etc.

  • 20+

    Years experience

  • 1000+

    Company area

  • 200+

    Team members

  • 30+

    Export country

Honor

News center
Industry knowledge extension of this category
The key features and functionalities of Temperature and liquid level integrated transmitter
Temperature and Liquid Level Integrated Transmitters combine two essential measurements into a single unit, streamlining monitoring and data collection processes. These transmitters often feature advanced sensor technologies, such as resistance temperature detectors (RTDs) or thermocouples for temperature measurement, and various methods like pressure-based or capacitance-based measurements for liquid level determination. The integration of these functions minimizes the need for multiple devices, simplifies installation, and enhances data synchronization.
Benefits and Advantages
The integration of temperature and liquid level measurements into a single transmitter offers several notable benefits to industries across the spectrum:
1.Space and Cost Efficiency: Using a single device for multiple measurements reduces the need for additional instrumentation, saving space and lowering costs associated with purchasing and maintenance.
2.Enhanced Accuracy: Integrated transmitters can provide more accurate and reliable data, as they eliminate the need for separate calibrations and reduce measurement discrepancies that might arise from using different devices.
3.Simplified Installation: Integrating temperature and liquid level measurements simplifies the installation process, reducing the complexity of wiring, connections, and setup.
4.Real-time Monitoring: Combined data from temperature and liquid level measurements enables real-time process monitoring, allowing for better control and adjustments to ensure optimal operational conditions.
5.Data Correlation: Having both temperature and liquid level data in a single device facilitates the correlation of these parameters, providing insights into potential relationships between temperature changes and liquid level fluctuations.
Applications Across Industries
Temperature and Liquid Level Integrated Transmitters find applications in a wide range of industries, including:
1.Chemical Processing: Accurate temperature and liquid level monitoring is crucial in chemical processing to ensure safety, quality, and efficiency during reactions, distillation, and storage.
2.Oil and Gas: In the oil and gas industry, integrated transmitters help manage liquid storage tanks, pipelines, and refineries, ensuring optimal temperature and level conditions for safe operations.
3.Pharmaceuticals: Precise monitoring of temperature and liquid levels is vital in pharmaceutical manufacturing, where strict adherence to conditions is essential for product quality.
4.Food and Beverage: Integrated transmitters play a role in maintaining appropriate temperature and liquid levels during food and beverage processing and storage, safeguarding product integrity.
5.Water Treatment: Effective water treatment relies on accurate temperature and liquid level measurements in various stages, from purification to distribution.
