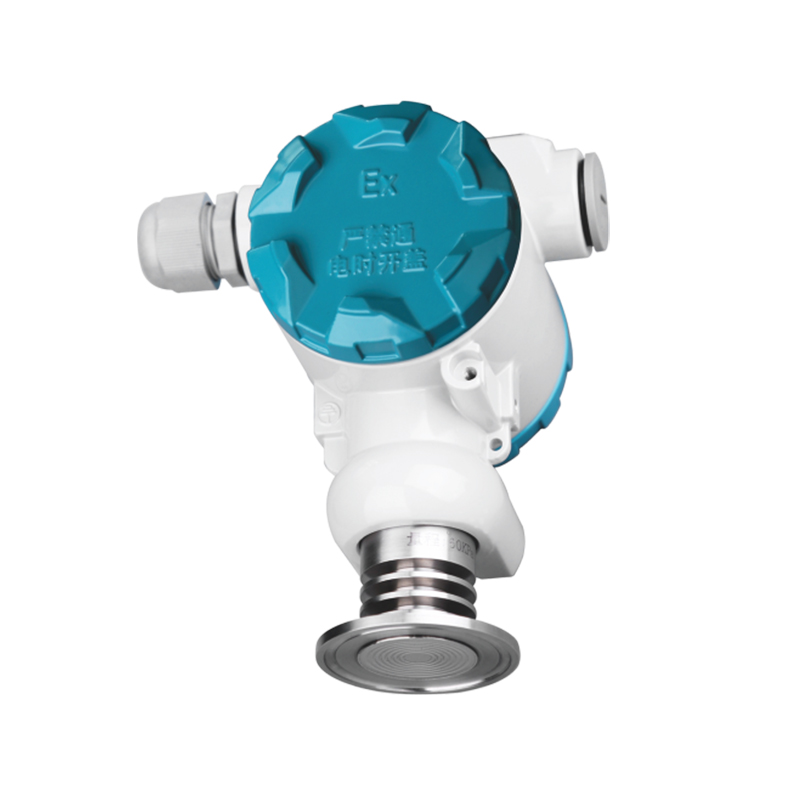

PB8100 series pressure transmitter Suppliers

PB8100 series diffused silicon high-precision pressure transmitters use high-precision, high-stability and high-reliability diffused silicon pressure sensing elements and imported high-quality integrated circuits. With pressure transmitter, it is used to measure the pressure of liquid or gas and the liquid level of various liquids, and convert the pressure or liquid level into a standard electrical signal. Field remote pressure and liquid level measuring instrument, PB8100 series pressure transmitter , because of its excellent performance, it can replace imported high-grade pressure transmitters, used in occasions with high requirements for measurement or measurement and control accuracy, and can have explosion-proof characteristics and good impact resistance.
  • Accuracy: 0.25%F·S ,0.5%F·S
  • Measuring range: -0.1...0bar to -1...0bar 0...0.1bar to 0...600bar to -1...25bar 0...1bar to 0...35bar absolute
  • Linearity: superior to 0.25%F·S
  • Stability: superior to 0.25%F·S for 1 year
  • Temperature drift: superior to ±0.75%(0 to 50℃)
  • Response time: ≤10mS
  • Power supply: 12...36VDC
  • Output: 4...20mA (or 1...5V)
  • Load resistance: 0 to 600 Ω
  • Proof pressure: 50%F·S
  • Process connection: M20*1.5 or 1/2NPT, Flange, Clamp or customized
  • Electric connection: M20*1.5
  • Protection: IP65
  • Wetted parts: 304 stainless steel
  • Diaphragm material: 316L stainless steel
  • Housing material: cast aluminum
  • Power supply: <0.5W (24VDC)
  • Ambient temp: -20...85℃
  • Compensated Temp: -20...85℃
  • Storage temp: -45...125℃
  • Exd lI CT6 Gb
About us

Ningbo Qingyang Automation Technology Co., Ltd.

Yuyao Huangong Automation Instruments Factory

Ningbo Qingyang Automation Technology Co., Ltd. is famous China PB8100 series pressure transmitter suppliers and OEM/ODM PB8100 series pressure transmitter manufacturers. We have advanced and complete top-notch testing equipment in the industry, physical testing laboratories, automatic pressure calibration equipment, automatic temperature calibration equipment, wholesale PB8100 series pressure transmitter etc. The above equipment can fully ensure the provision of high-precision final Custom PB8100 series pressure transmitter to customers, and can ensure that customers can meet all-round testing requirements for physical and chemical properties of materials, high-precision geometric dimension testing, etc.

  • 20+

    Years experience

  • 1000+

    Company area

  • 200+

    Team members

  • 30+

    Export country

Honor

News center
Industry knowledge extension of this category
What is PB8100 series pressure transmitter
The PB8100 series pressure transmitter is a type of electronic device that is used to measure the pressure of gases or liquids in a variety of industrial applications. It is designed to provide accurate and reliable pressure measurements in harsh environments, such as those found in chemical processing plants, oil and gas refineries, and power generation facilities.
The PB8100 series pressure transmitter is manufactured by Honeywell, a global leader in process control and automation technologies. It is a highly versatile device that can be configured to measure pressure in a wide range of units, including psi, bar, kPa, and MPa.
Use of PB8100 series pressure transmitter
The PB8100 series pressure transmitter has a wide range of applications across various industries, such as chemical, oil and gas, power generation, and others, where pressure measurement is a critical parameter for ensuring process efficiency and safety.
1.Food and beverage industry: The transmitter can be used to measure pressure in food and beverage processing, such as carbonation and fermentation.
2.Power generation: The transmitter can be used to measure pressure in steam boilers and gas turbines to ensure safe and efficient operation.
3.Pharmaceuticals: The transmitter can be used to measure pressure in pharmaceutical manufacturing processes, such as filtration and sterilization.
Advantages of PB8100 series pressure transmitter
The PB8100 series pressure transmitter offers several advantages over traditional pressure measurement devices. Here are some of the key advantages of the PB8100 series pressure transmitter:
1.High accuracy: The PB8100 series pressure transmitter provides highly accurate and reliable pressure measurements, making it ideal for critical industrial applications that require precise pressure control.
2.Wide range of measurement: The transmitter can be configured to measure pressure in a wide range of units, such as psi, bar, kPa, and MPa, making it versatile for different applications.
3.Robust construction: The PB8100 series pressure transmitter is designed to withstand harsh environments and is made of rugged stainless steel material, which is resistant to corrosion, abrasion, and other forms of damage.
