Home / Product / PRESSURE / PB8000 series pressure transmitter
More topics

PB8000 series pressure transmitter Suppliers

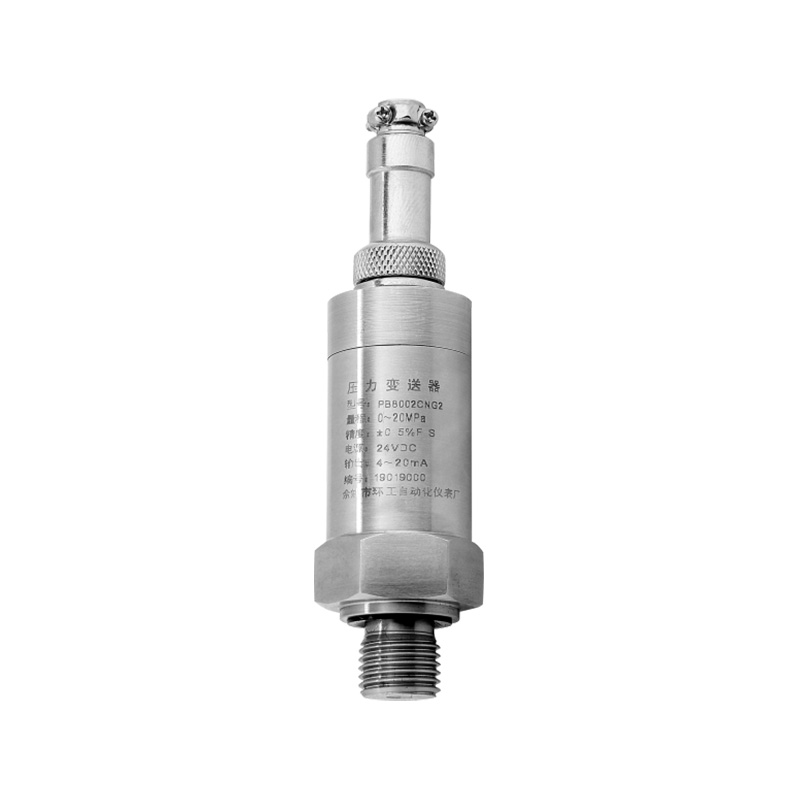

PB8000 series diffused silicon pressure transmitter is a practical and compact pressure transmitter. It adopts high-precision, high-stability and high-reliability diffused silicon pressure sensing elements to measure liquid or gas pressure and various On-site remote pressure and liquid level measuring instruments that convert the pressure or liquid level into standard electrical signals, are mainly used for mechanical equipment and other occasions with small installation space, and use a unique junction box for installation and maintenance. Convenient, because of its excellent performance, it can replace high-performance imported pressure transmitters.
  • Accuracy: 0.5%F·S
  • Measuring range: -0.1...0bar to -1...0bar 0...0.1bar to 0...600bar to -1...25bar relative 0...1bar to 0...35bar absolute
  • Linearity: Superior to 0.25%F·S
  • Stability: superior to 0.25%F·S
  • Temperature drift: superior to ±0.75%F·S（0...50℃)
  • Response time: ≤10mS
  • Power supply: 24VDC or (12VDC...36VDC optional)
  • Output: 4...20mA (or 1...5V)
  • Load resistance: 0~600Ω
  • Proof pressure: 150%F·S
  • Ambient temp: -20...85℃
  • Compensated temp: -20...85°C
  • Storage temp: -45...125°C
  • Process connection:1/4BSP
  • Wetted parts: 304 stainless steel
  • Diaphragm Material: 316L stainless steel
  • Housing Material: 304 stainless steel or 316 stainless steel
  • Power Consume: <0.5W (24VDC)
About us

Ningbo Qingyang Automation Technology Co., Ltd.

Yuyao Huangong Automation Instruments Factory

Ningbo Qingyang Automation Technology Co., Ltd. is famous China PB8000 series pressure transmitter suppliers and OEM/ODM PB8000 series pressure transmitter manufacturers. We have advanced and complete top-notch testing equipment in the industry, physical testing laboratories, automatic pressure calibration equipment, automatic temperature calibration equipment, wholesale PB8000 series pressure transmitter etc. The above equipment can fully ensure the provision of high-precision final Custom PB8000 series pressure transmitter to customers, and can ensure that customers can meet all-round testing requirements for physical and chemical properties of materials, high-precision geometric dimension testing, etc.

  • 20+

    Years experience

  • 1000+

    Company area

  • 200+

    Team members

  • 30+

    Export country

Honor

News center
Industry knowledge extension of this category
What is PB8000 series pressure transmitter
The PB8000 series pressure transmitter is a type of electronic device used to measure pressure and convert it into an electrical signal for processing and monitoring.The PB8000 series pressure transmitter features a rugged design suitable for use in demanding industrial environments. It is available in various configurations, including gauge pressure, absolute pressure, and differential pressure measurement. The transmitter is highly accurate, with a typical accuracy of 0.075% of full-scale output.
The PB8000 series pressure transmitter uses a piezoresistive sensor technology to convert the pressure into an electrical signal, which is then conditioned and amplified by an internal electronics module. The transmitter can be configured with various output options, including analog voltage or current, as well as digital communication protocols such as HART, Foundation Fieldbus, or Profibus.
Use of PB8000 series pressure transmitter
The PB8000 series pressure transmitter can be used in a wide range of industrial applications where accurate and reliable pressure measurement is critical. Some common uses of the PB8000 series pressure transmitter include:
1.Oil and gas industry: The PB8000 series pressure transmitter can be used to measure pressure in oil and gas pipelines, wellheads, and refineries. It can help monitor the flow of oil and gas and ensure that pressure levels remain within safe limits.
2.Chemical and petrochemical industry: In chemical and petrochemical plants, the PB8000 series pressure transmitter can be used to monitor pressure levels in various processes such as distillation, filtration, and reaction vessels. It can help ensure that the processes are operating within safe limits and can detect any abnormalities or leaks in the system.
3.Power generation industry: The PB8000 series pressure transmitter can be used to measure pressure in power generation systems, such as boilers and turbines. It can help ensure that the systems are operating efficiently and within safe pressure limits.
Advantages of PB8000 series pressure transmitter
The PB8000 series pressure transmitter offers several advantages over other types of pressure measurement devices. Some of the key advantages of the PB8000 series pressure transmitter include:
1.High accuracy: The PB8000 series pressure transmitter is highly accurate, with a typical accuracy of 0.075% of full-scale output. This level of accuracy ensures that the pressure measurements are reliable and precise, which is essential in many industrial applications.
2.Rugged design: The PB8000 series pressure transmitter is designed to withstand harsh industrial environments, with a rugged construction that can resist damage from shock, vibration, and extreme temperatures. This design makes the transmitter suitable for use in applications where other types of pressure measurement devices may be vulnerable to damage.
3.Wide range of pressure measurement: The PB8000 series pressure transmitter is available in various configurations, including gauge pressure, absolute pressure, and differential pressure measurement, with pressure ranges from vacuum to high-pressure applications. This wide range of measurement capability makes the transmitter suitable for a wide variety of applications.
