Home / Product / PRESSURE / HGPC-1000 series intelligent pressure transmitter + controller
More topics

HGPC-1000 series intelligent pressure transmitter + controller Suppliers

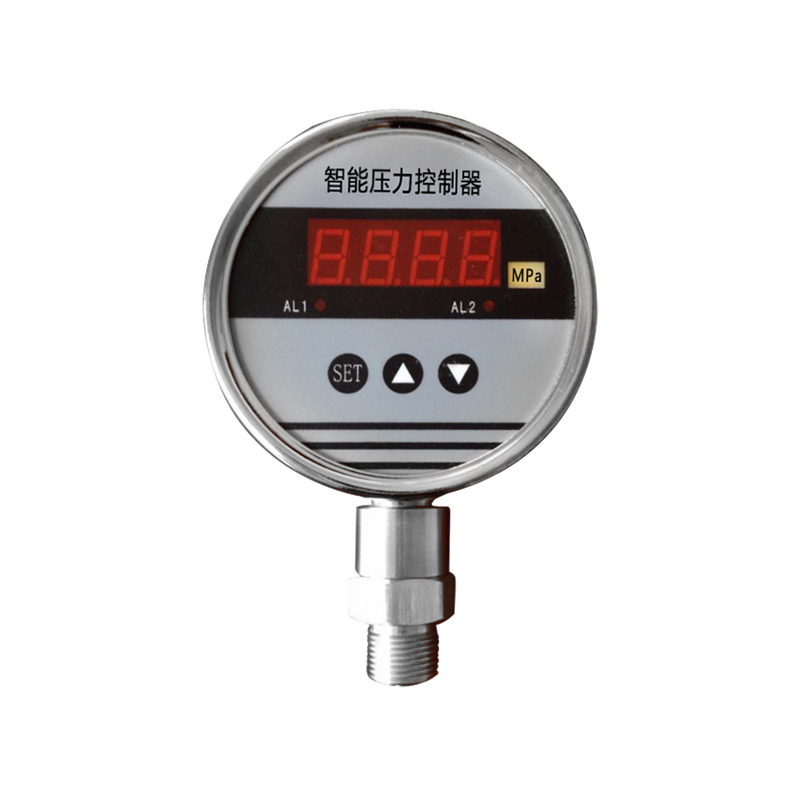

HGPC-1000 series intelligent pressure transmitter/controller is a pressure measurement and control product integrating pressure measurement, display, output and control. The product is a fully electronic structure. The front end adopts an oil-filled core with an isolation film, which is converted by high-precision A/D, processed by a microprocessor, displayed on-site, and outputs one-way analog quantity and two-way switch quantity.
The intelligent pressure transmitter/controller is flexible to use, simple to operate, easy to debug, safe and reliable. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries to measure, display and control the pressure of fluid media on site.
  • Measure range:-1...0bar, -1...1bar, -1...6bar, -1...10bar, -1...20bar,-1... 25bar, 0...0.1bar, 0...0.2bar, 0...0.35bar, 0...0.6bar, 0...1.0bar, 0...2.0bar, 0... 3.5bar, 0...6bar, 0...10bar, 0...20bar, 0...35bar, 0...60bar, 0...100bar, 0...200bar, 0...350bar, 0...600bar
  • Power supply: 3...4.5VDC or 24VDC  AA battery or 3.6V lithium battery
  • Accuracy: 0.25%F·S , 0.5%F·S, 1.0%F·S
  • Sample rate: 80 times/S
  • Proof pressure: 150%F·S
  • Ambient temp: 10...60℃
  • Storage temp: -45...125℃
  • Maxium switching current/voltage: 5A/250VAC
  • Wetted parts: 304 stainless steel
  • Diaphragm material: 316 stainless steel
  • Housing material: Square: ABS
  • Round: stainless steel
  • Weight: square: 400g
  • Round: 450g
  • Protection: IP65
About us

Ningbo Qingyang Automation Technology Co., Ltd.

Yuyao Huangong Automation Instruments Factory

Ningbo Qingyang Automation Technology Co., Ltd. is famous China HGPC-1000 series intelligent pressure transmitter + controller suppliers and OEM/ODM HGPC-1000 series intelligent pressure transmitter + controller manufacturers. We have advanced and complete top-notch testing equipment in the industry, physical testing laboratories, automatic pressure calibration equipment, automatic temperature calibration equipment, wholesale HGPC-1000 series intelligent pressure transmitter + controller etc. The above equipment can fully ensure the provision of high-precision final Custom HGPC-1000 series intelligent pressure transmitter + controller to customers, and can ensure that customers can meet all-round testing requirements for physical and chemical properties of materials, high-precision geometric dimension testing, etc.

  • 20+

    Years experience

  • 1000+

    Company area

  • 200+

    Team members

  • 30+

    Export country

Honor

News center
Industry knowledge extension of this category
1. Overview of HGPC-1000 series intelligent pressure transmitter controller
The HGPC-1000 series intelligent pressure transmitter + controller is an advanced device used for measuring, transmitting, and controlling pressure in various industrial settings. This high-capacity device comes with advanced features that allow it to accurately display and monitor pressure readings ensuring safe and efficient operation.

2. Features of HGPC-1000 series intelligent pressure transmitter controller
The HGPC-1000 series intelligent pressure transmitter controller is equipped with a high-resolution display that ensures clear and accurate pressure readings. This device also comes with advanced communication capabilities, including Modbus communication, which allows users to remotely monitor and control the device operations.
The HGPC-1000 series intelligent pressure transmitter + controller comes with a range of alarms that alert operators of any sudden changes in pressure readings. The device is also designed with a user-friendly interface, making it easy to program and configure for different applications.

3. Benefits of HGPC-1000 series intelligent pressure transmitter controller
The HGPC-1000 series intelligent pressure transmitter controller offers numerous benefits to users, including increased safety and efficiency. This device ensures accurate pressure readings, allowing operators to detect any potential leaks or hazardous pressure levels in real-time, enabling them to take immediate action to prevent accidents.
The device also offers significant cost savings by reducing maintenance costs and prolonging the lifespan of equipment. By monitoring pressure levels, the HGPC-1000 series intelligent pressure transmitter controller helps to prevent equipment failures caused by incorrect pressure readings.
