PB6300 series pressure transmitter Suppliers

PB6300 series of fine and small pressure transmitters use ceramic piezoresistive pressure sensing elements and imported high-quality integrated circuits, which are used to measure the pressure of liquid or gas, and convert the pressure or liquid level into standard electrical signals. Liquid level measuring instruments, PB6300 series pressure transmitters, are widely used in various automatic measurement and control fields because of their excellent performance.
  • Accuracy: 0.5%F·S
  • Measuring range: -0.1...0bar to -1...0bar 0...0.1bar to 0...600bar to -1...25bar relative 0...1bar to 0...35bar absolute
  • Linearity: Superior to 0.25%F·S
  • Stability: superior to 0.25%F·S
  • Temperature drift: superior to ±0.75%F·S（0...50℃)
  • Response time: ≤10mS
  • Power supply: 24VDC or (12VDC...36VDC optional)
  • Output: 4...20mA (or 1...5V)
  • Load resistance: 0~600Ω
  • Proof pressure: 150%F·S
  • Ambient temp: -20...85℃
  • Compensated temp: -20...85℃
  • Storage temp: -45...125℃

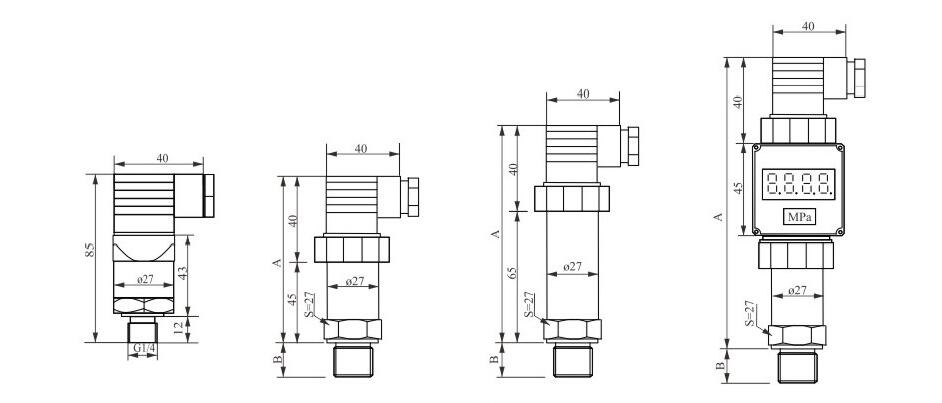

  • Process connection: M20*1.5male or 1/2 NPT male , Flange or clamp or customized
  • Electric connection: DIN43650-A/ISO standard junction box
  • Wetted parts: 304 stainless steel
  • Diaphragm Material: 316L stainless steel
  • Housing Material: 304 stainless steel or 316 stainless steel
  • Power Consume: <0.5W (24VDC)
About us

Ningbo Qingyang Automation Technology Co., Ltd.

Yuyao Huangong Automation Instruments Factory

Ningbo Qingyang Automation Technology Co., Ltd. is famous China PB6300 series pressure transmitter suppliers and OEM/ODM PB6300 series pressure transmitter manufacturers. We have advanced and complete top-notch testing equipment in the industry, physical testing laboratories, automatic pressure calibration equipment, automatic temperature calibration equipment, wholesale PB6300 series pressure transmitter etc. The above equipment can fully ensure the provision of high-precision final Custom PB6300 series pressure transmitter to customers, and can ensure that customers can meet all-round testing requirements for physical and chemical properties of materials, high-precision geometric dimension testing, etc.

  • 20+

    Years experience

  • 1000+

    Company area

  • 200+

    Team members

  • 30+

    Export country

Honor

News center
Industry knowledge extension of this category
What is PB6300 series pressure transmitter
The PB6300 series pressure transmitter is a type of pressure sensor/transmitter designed to accurately measure pressure and convert it into an electrical signal that can be transmitted to a control system.The PB6300 series pressure transmitter features a rugged stainless steel construction, making it suitable for use in harsh environments. It is also designed with advanced diagnostic features that enable users to monitor the health and performance of the transmitter in real-time, ensuring accurate and reliable operation. Overall, the PB6300 series pressure transmitter is a high-performance, versatile solution for pressure measurement and control applications.
Use of PB6300 series pressure transmitter
The PB6300 series pressure transmitter can be used in a wide range of applications where accurate pressure measurement and control is required. Some examples of its use include:
1.Oil and gas industry: The PB6300 series pressure transmitter can be used to measure the pressure of oil and gas in pipelines, storage tanks, and other equipment. It can help control the flow of oil and gas and ensure that equipment operates safely and efficiently.
2.Chemical industry: The PB6300 series pressure transmitter can be used to measure the pressure of chemical substances in various applications such as reactors, distillation columns, and storage tanks. It can help control the chemical processes and ensure safety.
3.Food and beverage industry: The PB6300 series pressure transmitter can be used to measure the pressure of fluids in various processes such as brewing, bottling, and canning. It can help ensure that the products are of high quality and safety standards.
Advantages of PB6300 series pressure transmitter
The PB6300 series pressure transmitter offers several advantages for pressure measurement and control applications. Some of the advantages are:
1.High accuracy: The PB6300 series pressure transmitter is highly accurate, with a typical accuracy of ±0.075% of span. This ensures that pressure measurements are precise and reliable.
2.Stable performance: The PB6300 series pressure transmitter has excellent long-term stability, with a typical drift of less than 0.25% per year. This ensures that pressure measurements remain accurate over time.
3.Wide pressure range: The PB6300 series pressure transmitter is available in a wide range of pressure ranges, from 0-1 psi to 0-10,000 psi. This makes it suitable for a variety of applications in different industries.
